Deep Draw Press

Deep Draw Press
Deep Draw Press
Product Code : 01
Product Description

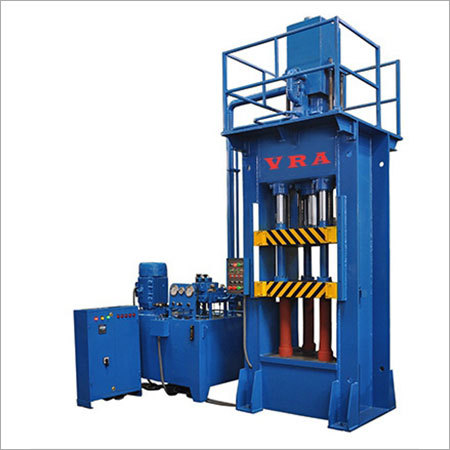

Deep Draw Press

We offer heavy duty frame type deep draw press, hydraulic deep drawing presses, which are widely used in different industries to manufacture deep drawing components. Accurate slide guiding with full stroke length is helpful to provide the better accuracy & effective performance of the presses. Deep draw press is perfect for deep drawing sheet Impeccably equipped with most advanced hydraulic & electronic (PLC) control. They are designed for high off center loads with heavy RAM force. Accurate slide guiding with full stroke length is helpful to provide the better accuracy & effective performance of the presses. Deep draw press is perfect for deep drawing automobile sheet metal components, oil tanks, stainless steel kitchen sinks, mudguards etc.

Model no.

Cap. (Ton)

Platen size (mm)

Day light gap (mm)

Main cyl stroke (mm)

Die cushion cap. (ton)

Die cushion cyl stroke (mm)

Die cushion table (mm)

Motor H.P

V R A-150

150

600x600

600

400

60

250

300x300

20

V R A-250

250

900x750

750

450

100

300

450x300

40

V R A-400

400

1350x1000

800

500

160

300

800x500

30x2

V R A-500

500

1500x1000

800

500

200

350

900x600

40x2

V R A-600

600

1600x1200

900

600

240

400

900x600

60x2

V R A-800

800

1800x1500

1000

600

320

400

1000x800

60x2

V R A-1000

1000

2100x1800

1200

750

400

450

1200x1000

75x2

V R A-1200

1200

2500x2000

1200

750

480

500

1500x1200

100x2
