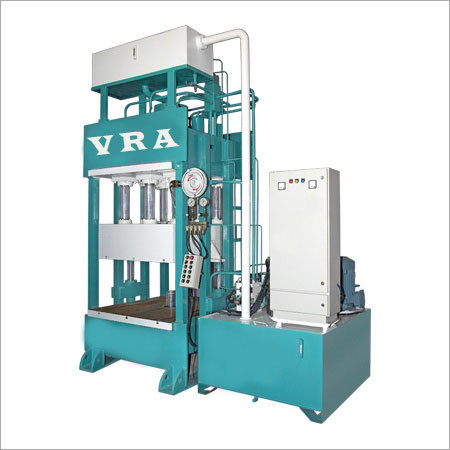

Hydraulic Hot Moulding Press

Hydraulic Hot Moulding Press
Hydraulic Hot Moulding Press
Send Inquiry
Product Code : 13
Product Description

Hydraulic Hot Moulding Press

Hydraulic Hot Moulding Press are specially designed for for optimum production of simple and intricate hot moulding of brake lining components with ejection facility. Hydraulic Hot Moulding Presses have soft opening immediately after the curning period to minimize any jerky movement which may cause damage to the components that is being molded. Flowmech also manufacture hydraulic hot moulding press as per the customer's requirements.

MODEL NO.

CAP. TON

PLATEN SIZE (MM)

DAY LIGHT GAP (MM)

STROKE (MM)

BORE/ RAM DIA (MM)

MOTOR H.P MAX.

V R A-50

50

250 X 250

200

150

180

3

V R A-100

100

350 X 350

300

250

250

5

V R A-150

150

450 X 450

400

300

300

7.5

V R A-200

200

500 X 500

450

350

350

10

V R A-250

250

600 X 600

450

350

400

10

V R A-300

300

700 X 600

500

400

460

15

V R A-400

400

800 X 650

500

400

510

20

V R A-500

500

900 X 750

600

450

560

20

V R A-600

600

1000 X 800

600

450

610

25

V R A-800

800

1200 X 800

750

500

710

30

V R A-1000

1000

1350 X 1000

900

550

810

50


V R A ENGINEERING WORKS
