Hydraulic Lab Testing Machine

Hydraulic Lab Testing Machine
Hydraulic Lab Testing Machine
Send Inquiry
Product Code : 24
Product Description

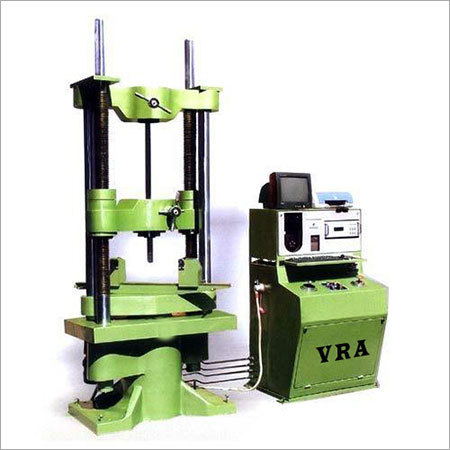

Hydraulic Lab Testing Machine

V R A hydraulic lab testing machines are designed to meet the customer's need for a compact and high efciency material life tester. Hydraulic testing machines operate very easily meeting the requirement to be ultra quiet for test lab use. The unit delivers accurate results. Customer supplied electronic logic circuitry and motor starter were incorporated into the assembly.


MODEL NO.

CAP. TON

PLATEN SIZE (MM)

DAY LIGHT GAP (MM)

STROKE (MM)

BORE/ RAM DIA (MM)

WORK PRESSURE KG/CM²

MOTOR H.P MAX.

V R A-10

10

200 X 200

250

250

90

160

2

V R A-25

25

250 X 250

300

300

140

170

3

V R A-50

50

300 X 300

400

350

180

210

5

V R A-75

75

400 X 350

400

400

220

210

7.5

V R A-100

100

450 X 400

450

450

250

210

10
