Solid Tyre Moulding Press
Product Details:
Product Description

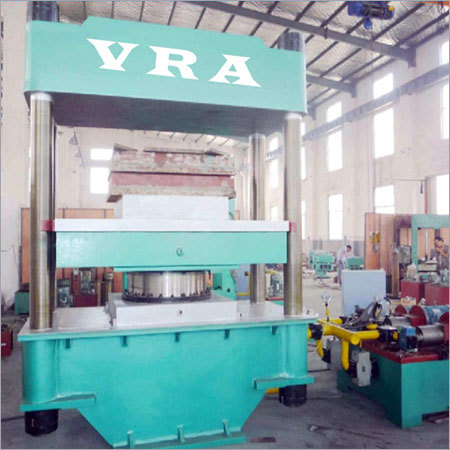

Solid Tyre Moulding Press
We design and supply an array of solid tyre moulding press, heavy duty four pillars type hydraulic presses are used in a multitude of industries across the globe. Solid tyre moulding presses features PLC, MMI and a specially designed low noise hydraulic power pads with cartridge valve for smooth change over of valves and PLC and MMI for the automation of hydraulic press cycle. Its four pillar support the moving bolster with gun metal bushes with a system of automatic centralized lubrication.
| MODEL NO. | CAP. TON | PLATEN SIZE (MM) | DAY LIGHT GAP (MM) | STROKE (MM) | BORE/ RAM DIA (MM) | MOTOR H.P MAX. |
| V R A-100 | 200 | 500x500 | 450 | 350 | 350 | 10 |
| V R A-200 | 250 | 600x600 | 450 | 350 | 400 | 10 |
| V R A-300 | 300 | 700x600 | 500 | 400 | 460 | 15 |
| V R A-400 | 400 | 800 X 650 | 500 | 400 | 510 | 20 |
| V R A-500 | 500 | 900 X 750 | 600 | 450 | 560 | 20 |
| V R A-600 | 600 | 1000 X 800 | 600 | 450 | 610 | 25 |
| V R A-800 | 800 | 1200 X 800 | 750 | 500 | 710 | 30 |
| V R A-1000 | 1000 | 1350 X 1000 | 900 | 550 | 810 | 50 |
| V R A-1200 | 1200 | 1500 X 1200 | 900 | 550 | 910 | 60 |
| V R A-1500 | 1500 | 1800 X 1800 | 900 | 550 | 1000 | 75 |
